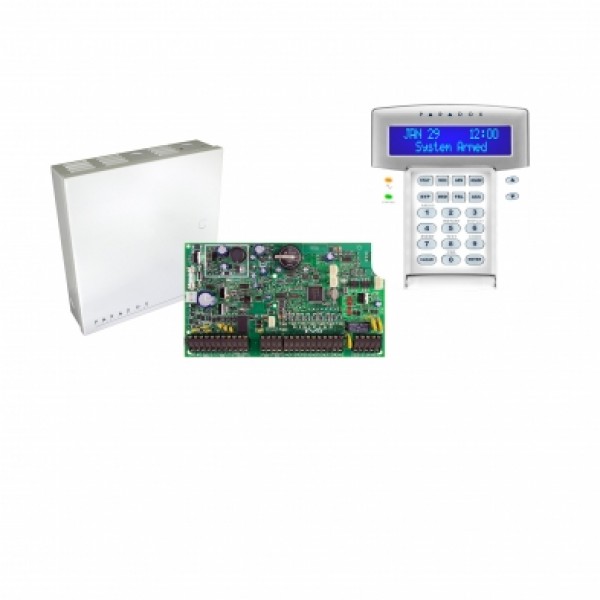

PARADOX - DIGIPLEX EVO-192 /K 641 K/P UPGRADE M/BOX KIT

Pa9300

• 1 x 8 Zone Control Panel
• 8 on-board zones
• Built-in access control features
• Supports PCS Series, IP Module
• In-field firmware upgrade via 307USB, Babyware and WinLoad
• Selectable input resistors for EOL and Tamper
• Compatible with NEware V4.0 or higher
• Automatic Daylight Savings Time feature
• PGM1 can be used as a 2-wire smoke input
• Program remote controls using the master or installer codes
• Built-in real-time clock backup battery
• 1.7A switching power supply
• 1 supervised bell output, auxiliary output and telephone line
• Patented 2up to coupler dialer circuit - the most reliable dialer in the industry
• Push button software reset
• Push button to activate or deactivate the Auxiliary output
• Fits in a 28cm x 28cm x 7.6cm metal box
• The EVO series share the same programming for easy panel substitution

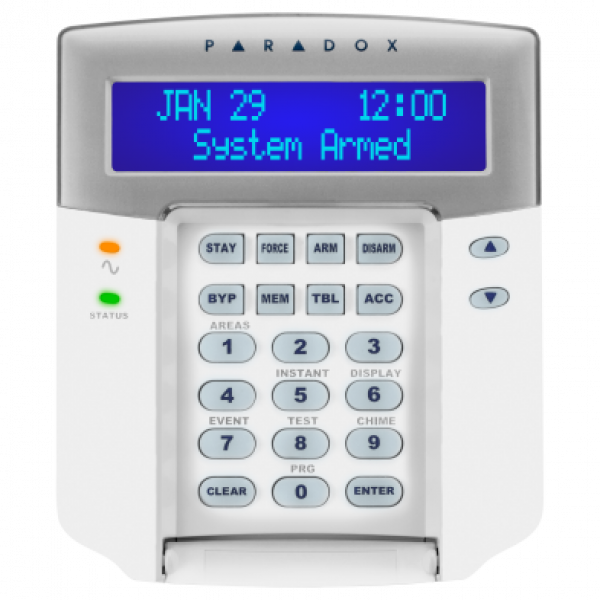

1 x LCD Keypad:

• Zone Alarm Display : The zones in alarm are shown until the system is disarmed
• In-field firmware upgradeable via a CONV4USB and WinLoad
• Simplified end-user remote control programming
• 32-character blue LCD with programmable labels
• Assign to one or more partitions
• 1 addressable zone and 1 PGM output

• Independently set chime zones

• 14 one-touch action buttons

• 3 keypad-activated panic alarms

• Adjustable backlight, contrast and scroll speed

• Display time using the 12Hr or 24Hr format

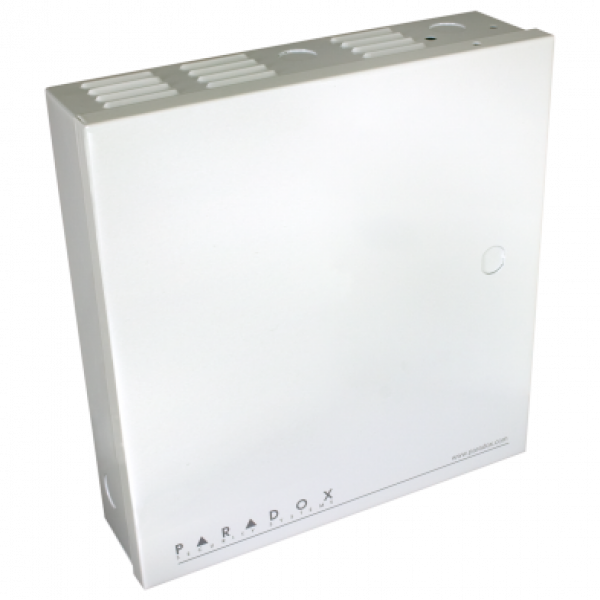

1 x Metal Box:

• 28cm x 28cm x 7.6cm Metal Panel Box
