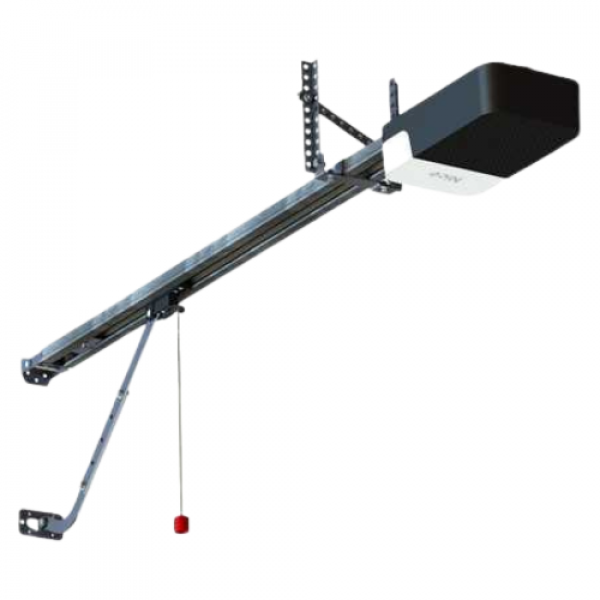

NICE - DC BLue Astute Garage Opener Kit

03513-000

ET NICE DC Blue Astute garage door operator.

• Super-charger + lithium battery = a powerful package!
• The Li-lon battery is pre-installed in the motor-head housing. (Saves installation time.)
• The charger manages lithium and SLA batteries.
• Lithium-ready high-speed charger. Fully charges our standard lithium battery in 1,4 hours. It charges as quickly as a fast-charging mobile phone!
• Lithium battery backup ensures extra Nice reliability.

Battery and charger features:

• Battery Management System is built-in.
• Low voltage cut-off.
• Over voltage cut-off.
• Short circuit cut-off.
• Safe operating temperature control.
• High speed battery recovery. The door can be operated within 10 minutes of charging from fully depleted depth-of-discharge, when using the Nice Li-lon battery.
• Works with LiFeP04, Li-lon, ACM, GEL and Crystal Sealed Lead-Acid (SLA) batteries.
• More than enough battery reserve for either 48 hours of standby or 70 open/close cycles, whichever comes first. (A typical single-family home uses fewer than 10 open/close cycles per day.)
• Wide range mains power input voltage (85 — 264 VAC) and frequency (47 - 63 Hz), so the motor is perfectly suited to inverter-generated power.
• Quicker installation with improved fastener kit and internal battery (no need to mount external battery).
• Same drawbar and setup methodology as other DC Blue Tip-up and Sectional Door Operators.
• Long-term high performance - that's the real beauty of it
• Nice and quiet operation with the trusted strong DC Blue belt drawbar.
• Smart safety beam circuit that monitors for open circuit and short-circuiting cable faults.   Troubleshooting and status reports are indicated both visually and audibly. - Indications are now only given when the user triggers the door.

See and hear warnings when:

• Household mains are interrupted.
• The battery charge level is low.
• The door is obstructed.
• The door needs to be balanced or service is required.
• Lock-out is enabled.
• The safety beam trigger is preventingdoor from closing.
• The door travel limits setup has not been completed correctly

Features:

• 85-264VAC input Voltage
• Built-in Lithium Battery (Battery Dependent)
• Use the same Belt drive as DC Blue PICO or Advance motors
• 15m Door Size
• 24VDC Motor
• 20 Cycles per 24 Hours (Max. 5 cycles per hour)
