LIMITED STOCK AVAILABLE!
REDUNDANT STOCK - WARRANTY EXPIRED
NON-REFUNDABLE

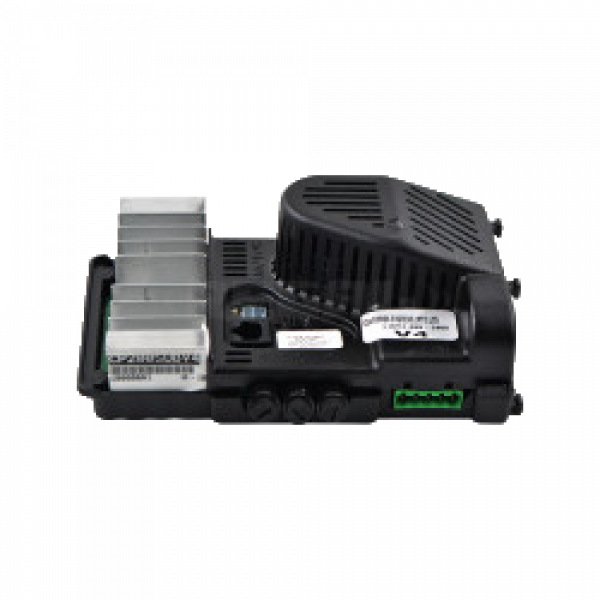

CP200 - INVERTER MODULE Product Code: CP200EV3 The Inverter rectifies the 230V AC input into 310V DC while also changing the single-phase input into the three-phase supply needed to operate the A10 electric motor
Features:
- Proven lightning protection
- High immunity to noise – not affected by external interference
- Micro-controller platform allows customisation – improved versatility
- Trigger input with local test button – useful for testing the operation of the device when a transmitter is not available
- Pedestrian Opening input - prevents unauthorized vehicle access
- Safety Beam input – connecting infrared safety beams dramatically increases the safety of the automated system
- Local and remote multi-function Gate Status LED
- Free-exit input (only opens gate) – ideal for fitting free exit ground loops or pushbuttons in townhouse and high-volume vehicle access applications
- Timed potential-free contact (e.g. Courtesy Lights)
- Low-voltage switching of potential-free contact
- Selectable/adjustable Auto Close timer (5 - 40 seconds)
- Override of Auto Close timer via trigger input
- Local diagnostic LEDs for easy programming
- 12V DC auxiliary supply at 150mA
