Details

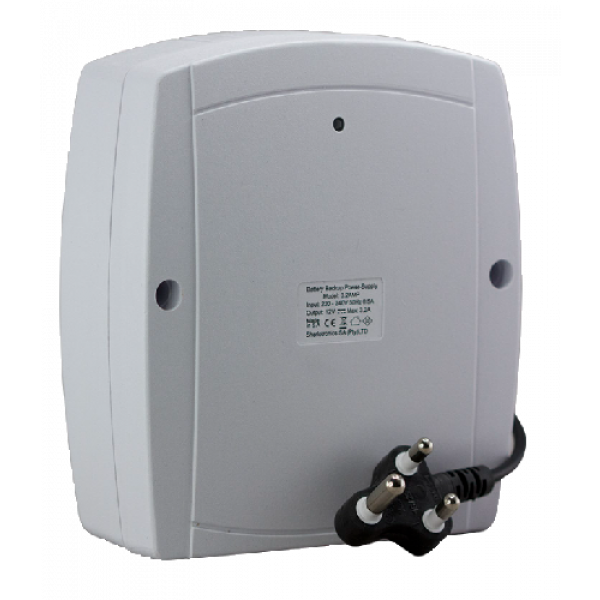

3.2 AMP Power-Supply Battery charger with Low Battery Cut Out: 3.2AMP
Applications:
- Alarm panel Battery backup
- CCTV Battery backup
- Backup power supply for door controller.
- Magnetic lock for an Access Control solution
Features:
- Microprocessor Controlled charging output.
- Low battery switch off at 10V DC.
- Buzzer tones on battery low and AC Fail.
- Resettable Fuse protection on output.
- Fuse protection on AC input.
- ABS Plastic enclosure.
Specifications:
- Input Voltage Range: 110V ~ 230V AC 50Hz
- Output Voltage: 13V ~ 14.4V Adjustable
- Max Current output: 3.2A DC / 40 Watts
- Relay contact rating: 10A
- AC Fail output rating: 140mA Positive switching
- Operating temp: -3°C to 60°C
- Dimensions: 200 x 180 x 87mm
- Gross Weight: 0.895Kg
*Battery excluded*
