01964-000

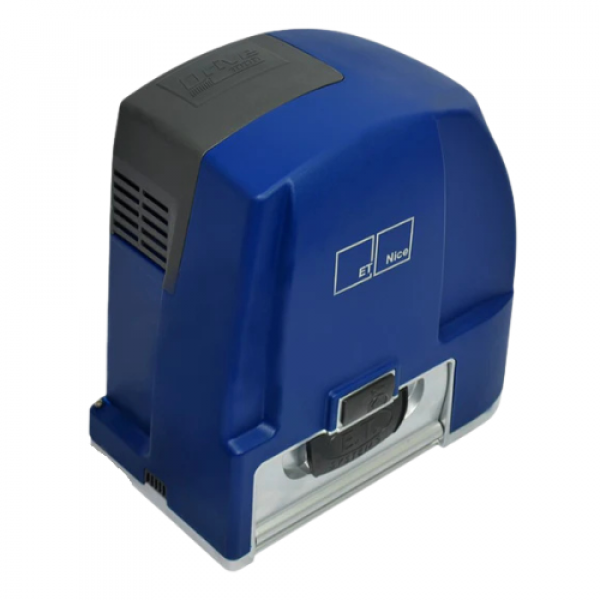

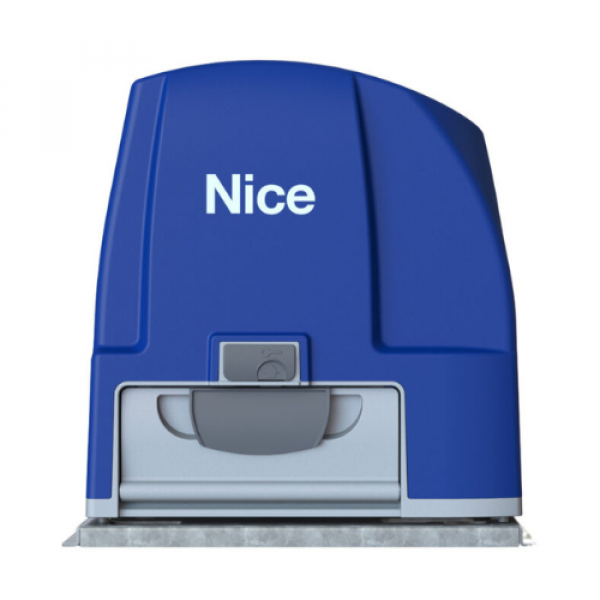

Drive 1000 sliding gate operator ONLY. NO BATTERY, Rack and Remotes.
Features:
- Input voltage: 220 - 240Vac @ 50Hz - 60Hz
- Primary power supply to electric motor: 288VA toroidal transformer (Power Pack)
- Maximum duty cycle with 220Vac present: 98%
- Motor power: 24VDC, 250W
- Battery: 24V 5Ah
- Number of operations on battery reserve without AC present: 100 within 24 hours
- Battery charger: Built in multiple stage with cycling and battery health monitor
- Maximum gate mass: 1000kg
- Rated starting thrust: 500N
- Rated running thrust: 400N
- Maximum gate travel: 40m
- Maximum gate speed: 28m/min
- Anti-crushing safety sensing: Yes – Electronic gate profiling
- Built-in receiver frequency: 433.2 MHz
- Receiver format: E.T. BLU MIX © backward compatible with E.T. BLUE (Rolling code)
- Receiver memory capacity: 1000 users - 4 channels each
- 4 receiver channels: Button trigger, pedestrian, auxiliary relay, holiday lock-out
- Tamper alarm monitoring: Safety beam tampering, gate forced open and gate kept open monitoring
- Ancillary connections: Either traditional switched wiring or 2 wire daisy chained NICE BlueBus
- Auxiliary power supply output: 12VDC @ 400mA, electronically protected
- Auto-close modes: Simple auto-close, Condominium or Passive Infra-red Access Control (PIRAC)
- Pedestrian mode: Either auto-close or 2 step logic
- Operating temperature range: -10°C to 50°C (14F to 122F)
