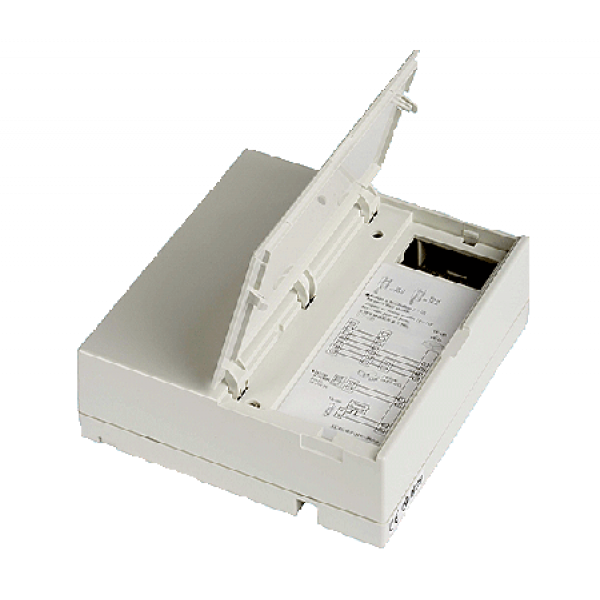

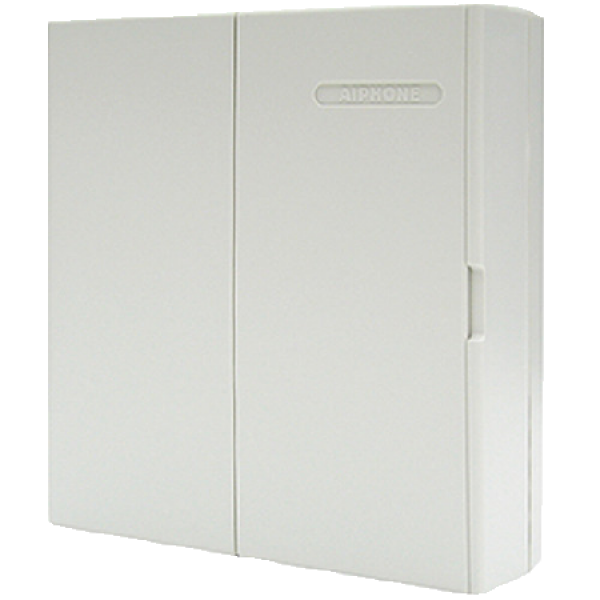

AIPHONE - DE-UR Door Station Adapter

R1,196.46

Details

LIMITED STOCK AVAILABLE!

REDUNDANT STOCK - WARRANTY EXPIRED

NON-REFUNDABLE

Aiphone DE-UR Door Station Adapter for TD-H Phone Selective Call Intercom System, Surface-mount with 83.5mm, 3.3" guide, 120 mA maximum Power Consumption, Intermittent tremolo, 2.5-timed Call Tones, Call-tone modulating circuits, 2.5 sec timed, Comes with door-release control terminals, UPC 790143408114, Powered by using system's PS-I 2N12C power supply (not included)

Overview:

  • The Aiphone DE-UR Door Station Adapter adds a door station, audio or pan/tilt video to TD-H Phone Selective Call Intercom System. The adapter allows the connection of an IE or IF Series Door Station in a TD-H System. The DE-UR features a selectable call tone and normally open (N/O) dry contact for door release.

Features:

  • Surface-mount with 83.5mm, 3.3" guide
  • 120 mA maximum Power Consumption
  • Intermittent tremolo, 2.5-timed Call Tones
  • Call-tone modulating circuits, 2.5 sec timed
  • Comes with door-release control terminals
  • Powered by using system's PS-I 2N12C power supply (not included)

Specifications:

  • Power Source: 12 VDC, supplied by PS-12A (PS-12C) (not included)
  • Power Consumption: 120 mA maximum
  • Call Tones: Intermittent tremolo, 2.5-timed
  • Wiring: To Audio IE/IF Door: 2 conductors (parallel)
  • To TD-H/B Stations: 4 conductors (D, C and +, -)
  • Terminals: Capacity: 30 VDC, 1 A or 30 VAC, 1 A

  • Weight: 0.71 lb (0.32 kg)

  • Dimensions: 6.3" H x 5.9" W x 1.8" D - 16.0 x 15.0 x 4.5 cm

Distance From Door Station:

  • 22AWG: 500.0' (152.4 m)
  • 20AWG: 750.0' (228.6 m)
  • 18AWG: 1,200.0' (365.8 m)
